Chirp Spread Spectrum Technology: The Unsung Hero of RTLS

When tracking assets or people in real-time, especially in challenging environments like underground mines, massive scrap yards, or sprawling industrial facilities, not all technologies offer equal performance. Chirp spread spectrum technology might not be the flashiest name in wireless communication, but it is quietly becoming a major player in Real-Time Location Systems (RTLS). With its unique ability to combine long-range communication, low power consumption, and resistance to interference, CSS is proving to be a game-changer for industries needing reliable tracking solutions in demanding environments. Let us take a closer look at what chirp spread spectrum technology is, why it matters, and how it shapes the future of RTLS.

What is Chirp Spread Spectrum Technology?

At its core, chirp spread spectrum technology is a wireless communication method that uses “chirps” - signals gradually increasing or decreasing in frequency over time- to transmit data. This approach spreads the signal across a wide bandwidth, making it incredibly resilient to interference and noise. Think of it like this: instead of sending a single, narrow beam of sound, CSS sends a wide, sweeping sound wave. This makes it much harder for other noises to drown out the message.

The idea behind chirps is not new; nature has used them for centuries. Dolphins and bats, for example, rely on chirp-like signals for echolocation. In the tech world, CSS first gained attention in radar systems during the 1940s and has since evolved into a powerful tool for modern wireless communication. Today, CSS is widely used in RTLS applications where traditional GPS or other technologies fall short. This provides a clear chirp spread spectrum explained overview.

How Chirp Spread Spectrum Technology Works

While the underlying concepts might sound complex, understanding the way chirp spread spectrum modulation works can be broken down into three main components. This section explains the basic mechanics of CSS communication.

a. Underlying Technology: Chirp Pulses and Modules

The backbone of CSS communication consists of chirp pulses. Each pulse carries data by sweeping across a wide frequency range within a specific duration, typically one microsecond. These signals are managed by CSS modules - small devices equipped with chirp spread spectrum technology. These modules attach to assets or personnel as tags.

b. Workflow: Communication with Anchor Points

CSS modules communicate with fixed anchor points, which you can think of as fixed antennas, placed throughout the area being monitored. A central system then processes these chirp signals using advanced algorithms to calculate precise locations in real-time. This data can also integrate with broader asset management systems if needed.

Core Benefits of Chirp Spread Spectrum Technology

So, what makes chirp spread spectrum technology such a standout for RTLS? Its unique strengths deliver significant advantages, especially for operations in challenging environments. Here are the key benefits:

a. Long-Range Communication

CSS transmits signals over impressive distances, up to 570 meters in some cases - about twice the height of the Empire State Building. This makes it ideal for large facilities or outdoor environments where other technologies struggle to maintain connectivity.

b. Resilience to Interference

In busy industrial environments filled with competing wireless signals, CSS excels. Its spread-spectrum nature ensures it cuts through noise and maintains reliable communication even in the most challenging conditions. This advantage of chirp spread spectrum is crucial for operational reliability.

c. Low Power Consumption

CSS is designed for energy efficiency. Devices like tags and sensors can run on small batteries for extended periods, perfect for cost-conscious operations that want to minimize maintenance and battery replacement.

d. Performance in Tough Environments

Whether deep underground in a mine or navigating dense factory floors, CSS performs reliably where GPS and other systems fail. It handles interference from rock walls, heavy machinery, and complex layouts effectively.

Top Use-Cases of Chirp Spread Spectrum Technology

The versatility of chirp spread spectrum technology has opened doors to a wide range of applications across industries. Here are some key areas where what is chirp spread spectrum delivering real impact:

a. Underground Mining

Tracking miners and equipment deep underground is difficult, but CSS excels here thanks to its long range and ability to handle interference from rock walls and heavy machinery. It enhances safety and operational efficiency in a critical environment.

b. Industrial Facilities

In sprawling warehouses or manufacturing plants, CSS helps monitor the movement of assets like forklifts, tools, or raw materials with fewer anchor points compared to other technologies, simplifying deployment.

c. Livestock Monitoring

On large farms, CSS tags can track livestock over long distances while also monitoring conditions like temperature or activity levels, providing valuable data for agricultural management.

d. Indoor Navigation

In places like shopping malls or hospitals where GPS does not work well indoors, CSS provides reliable location data for navigation or asset tracking, improving visitor experience and operational flow.

e. Cargo Tracking

From shipping containers to pallets in transit, CSS ensures valuable goods are monitored every step of the way - even when traditional GPS coverage drops off, providing continuous visibility.

Challenges and Limitations of Chirp Spread Spectrum Technology

Like any technology, chirp spread spectrum technology has its challenges. While it offers many benefits, understanding its limitations helps in planning effective RTLS deployments.

Technology	Accuracy	Range	Power Consumption	Interference Resistance	Ideal Use Case
CSS	Medium (~5m)	High (~570m)	Low	High	Large-scale facilities & tough environments
UWB	High (~10cm)	Medium (~150m)	Medium	Medium	High-precision tracking
Wi-Fi	Low (~5m)	Medium (~50m)	High	Low	Leveraging existing infrastructure
BLE	Medium (~5m)	Low (~100m)	Very Low	Medium	Indoor navigation & cost-sensitive setups

a. Accuracy Limitations

While its accuracy is sufficient for many applications, typically around 5 meters, it may not match the sub-meter precision offered by Ultra-Wideband (UWB) in certain use cases that demand extreme granularity.

b. Signal Interference in Complex Environments

Although generally resistant to interference, extremely dense environments with reflective surfaces can still pose challenges for signal clarity, requiring careful system design and placement.

To overcome these challenges, consider using hybrid systems that combine CSS with other technologies like UWB for applications requiring higher accuracy. Optimizing anchor placement during deployment also helps minimize signal disruptions and improves overall system performance.

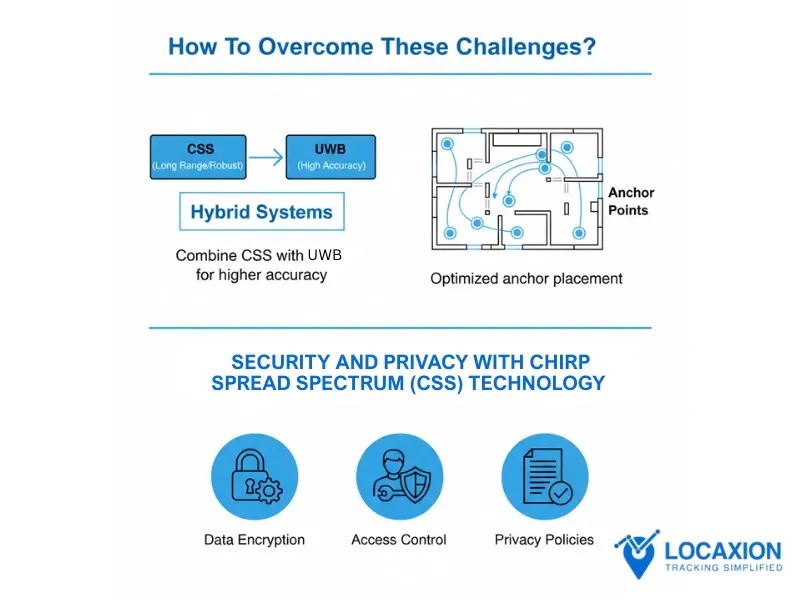

How To Overcome These Challenges?

• Use hybrid systems that combine CSS with other technologies like UWB for applications requiring higher accuracy.
• Optimize anchor placement during deployment to minimize signal disruptions.

Security and Privacy with Chirp Spread Spectrum Technology

With any RTLS system comes the responsibility of protecting sensitive data, and chirp spread spectrum technology is no exception. Ensuring robust security and respecting privacy are paramount.

a. Data Encryption

All transmitted data should use robust encryption protocols to prevent unauthorized access and maintain data integrity.

b. Access Control

Limiting who can view location data through role-based permissions ensures that only authorized personnel have access to sensitive information.

c. Privacy Policies

Clearly define how location data will be used and communicate this transparently with employees or stakeholders to build trust and ensure compliance.

The Future of Chirp Spread Spectrum Technology

As industries continue pushing boundaries with RTLS solutions, here is what we expect from chirp spread spectrum technology moving forward:

a. Integration with IoT and AI

By combining CSS with IoT sensors and AI-powered analytics, companies can unlock deeper insights into asset utilization, predictive maintenance, and operational efficiencies.

b. Improved Modulation Techniques

Ongoing research into advanced chirp spread spectrum modulation methods promises even greater accuracy and performance for future iterations of CSS, pushing its capabilities further.

c. Hybrid Systems

Expect more solutions that blend CSS with complementary technologies like Bluetooth Low Energy (BLE) or UWB for enhanced flexibility, allowing systems to leverage the strengths of multiple technologies.

Conclusion: Is Chirp Spread Spectrum Technology Worth It?

Chirp spread spectrum technology may not always get the spotlight it deserves, but its unique strengths make it an invaluable tool in Real-Time Location Systems—especially in environments where other technologies fall short. Whether you are managing assets underground or tracking equipment across sprawling industrial sites, CSS offers an excellent balance of reliability, range, and efficiency. It stands out as a robust solution for complex tracking needs.

Are you ready to leverage the advantages of Chirp Spread Spectrum (CSS) for your RTLS applications? Our expert team specializes in designing and implementing robust CSS strategies that enhance communication, improve range, and optimize power efficiency for your projects. Contact Us Today!
